Sealed Type Blind Rivet (A4 Stainless/ Stainless)
| Body | Material | 316 Stainless steel |
|---|---|---|
| Surface | Natural polish | |
| Mandrel | Material | 316 Stainless steel |
| Surface | Natural polish |
Installation Sequence
Secure & Reliable Installation
- Fully sealed fastener which provides the weather resistance fastener.
- Good hole filling and retained mandrel which can provide the steady vibration resistance riveting.
- The size is from φ3.2mm (1/8”) to 6.4mm (1/4”).
Technical Drawings & Specifications

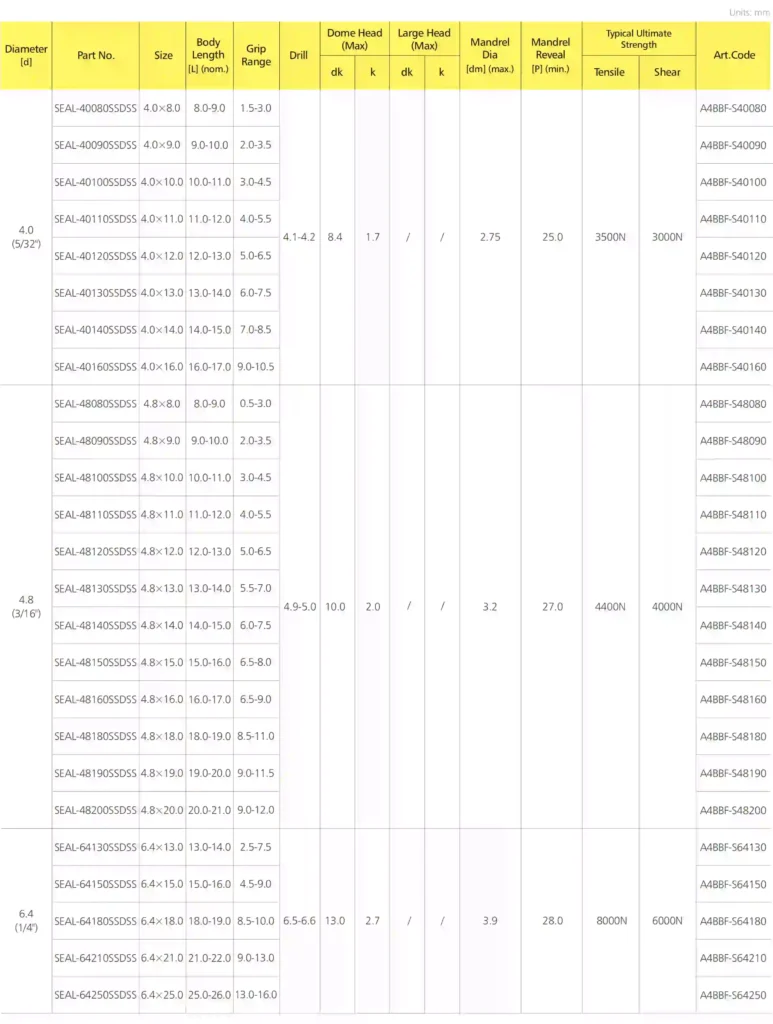

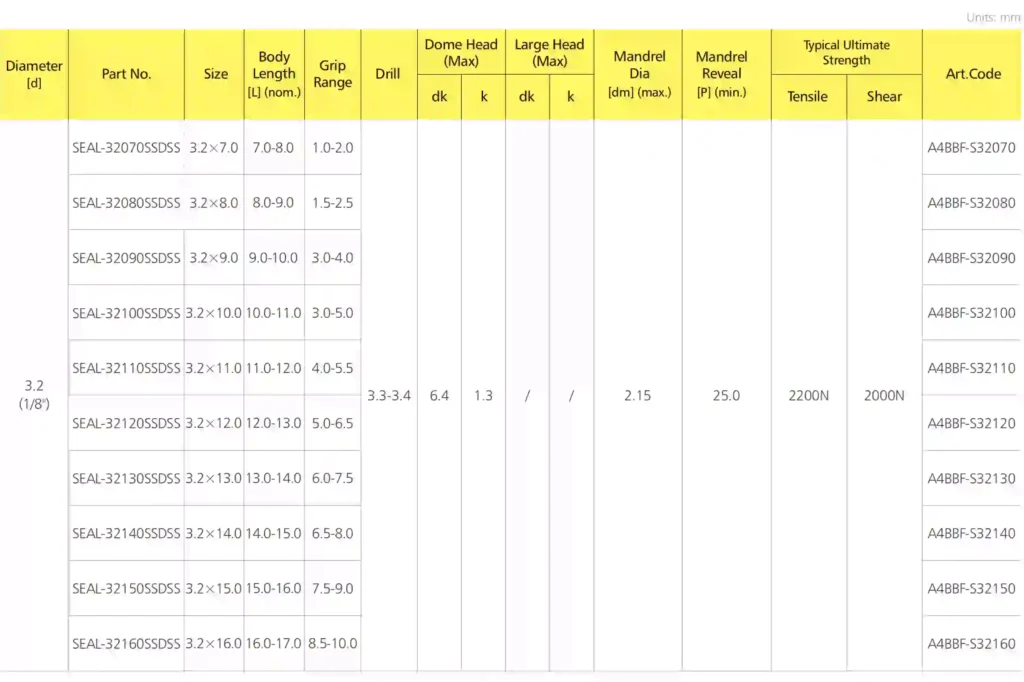

Technical Parameters
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
