Open Type Blind Rivets (All stainless steel)
| Mandrel | Material | 304&316 Stainless steel |
|---|---|---|
| Surface | Natural polish | |
| Body | Material | 304&316 Stainless steel |
| Surface | Natural polish |

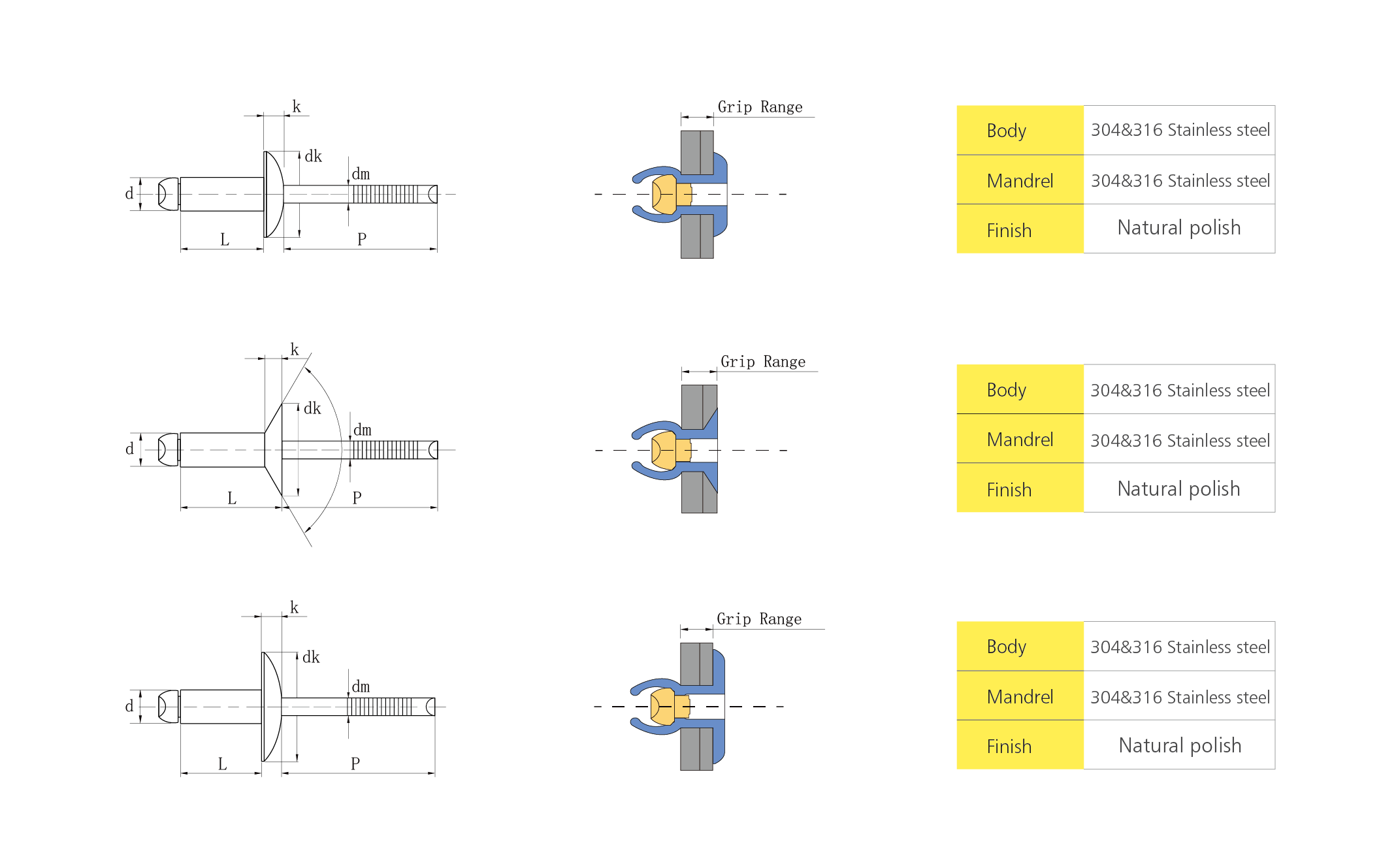

Installation Sequence
Secured,effective installation
- Standard blind rivets with prices advantage.
- Blind Side Riveting.
- For fast & simple installation.
- For the full automatic installation.
- High retaining force after riveting.
- Various colours.

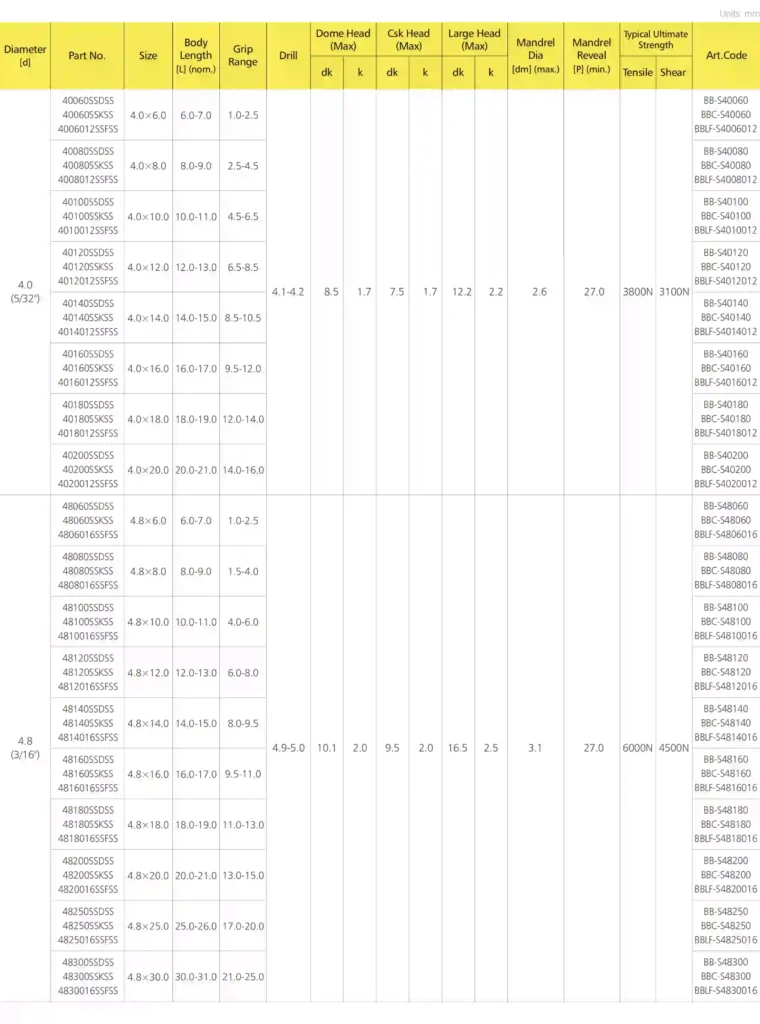

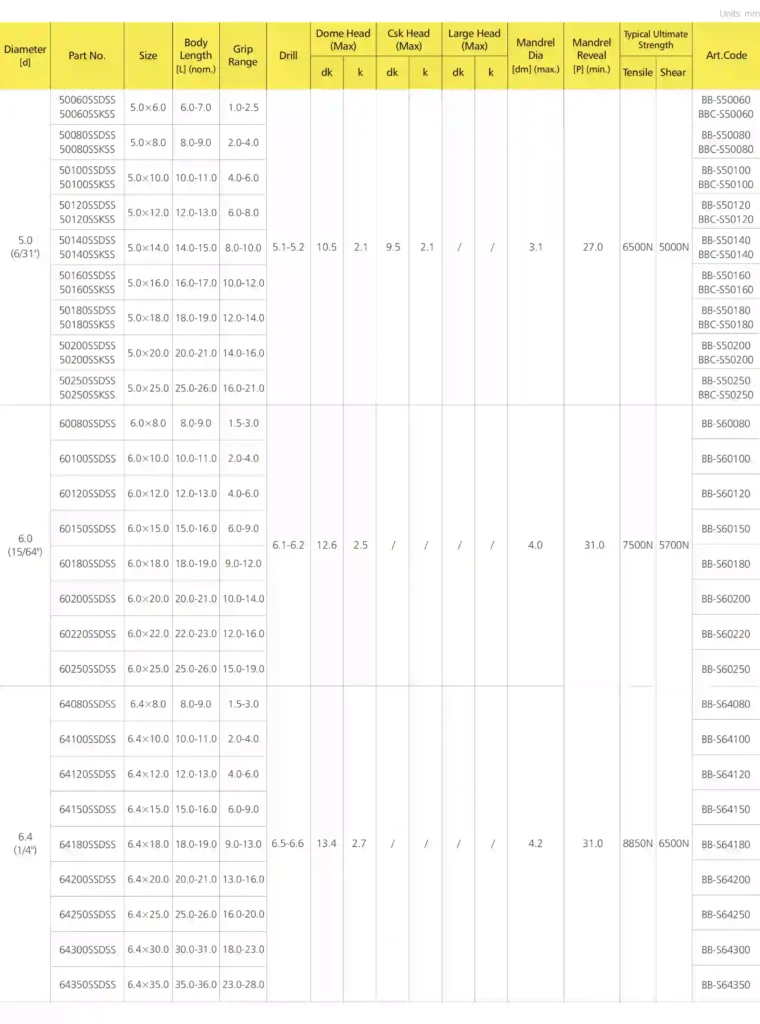

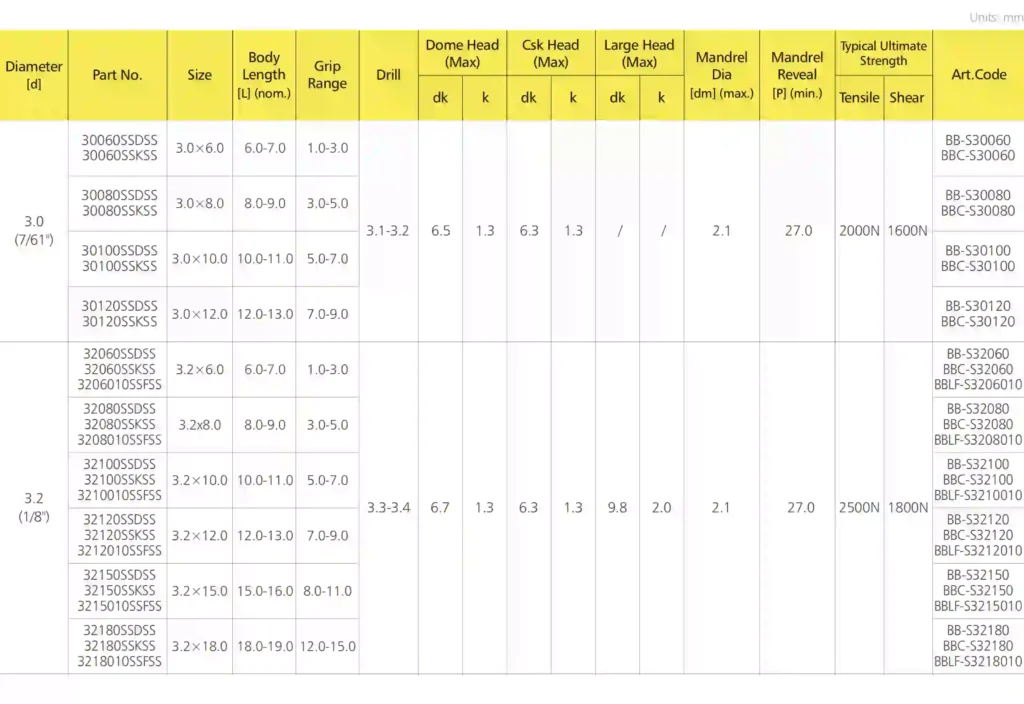

Structure and parameters
Technical Parameters
| Diameter d |
Available Sizes | Available Head Types | Body Length L (nom.) |
Overall Grip Range | Recommended Drill | Dome Head Max. |
Countersunk Head Max. |
Large Flange Max. |
Mandrel Dia. dm (max.) |
Mandrel Reveal P (min.) |
Typical Ultimate Strength | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dk | k | dk | k | dk | k | Tensile | Shear | ||||||||
| 3.0 mm | 3.0×6, 8, 10, 12 | Dome / Countersunk | 6.0–13.0 mm | 1.0–9.0 mm | 3.1–3.2 mm | 6.5 | 1.3 | 6.3 | 1.3 | N/A | N/A | 2.1 mm | 27.0 mm | 2000 N | 1600 N |
| 3.2 mm | 3.2×6, 8, 10, 12, 15, 18 | Dome / Countersunk / Large Flange | 6.0–19.0 mm | 1.0–15.0 mm | 3.3–3.4 mm | 6.7 | 1.3 | 6.3 | 1.3 | 9.8 | 2.0 | 2.1 mm | 27.0 mm | 2500 N | 1800 N |
| 4.0 mm | 4.0×6, 8, 10, 12, 14, 16, 18, 20 | Dome / Countersunk / Large Flange | 6.0–21.0 mm | 1.0–17.0 mm | 4.1–4.2 mm | 8.5 | 1.7 | 7.5 | 1.7 | 12.5 | 2.2 | 2.6 mm | 27.0 mm | 3500 N | 2600 N |
| 4.8 mm | 4.8×6, 8, 10, 12, 14, 16, 18, 20, 25, 30 | Dome / Countersunk / Large Flange | 6.0–31.0 mm | 1.0–25.0 mm | 4.9–5.0 mm | 10.1 | 2.0 | 9.5 | 2.0 | 16.5 | 2.5 | 3.1 mm | 27.0 mm | 4500 N | 3400 N |
| 5.0 mm | 5.0×6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40 | Dome / Countersunk / Large Flange | 6.0–41.0 mm | 1.0–35.0 mm | 5.1–5.2 mm | 10.5 | 2.1 | 9.5 | 2.1 | 16.5 | 2.5 | 3.1 mm | 27.0 mm | 5000 N | 3700 N |
| 6.0 mm | 6.0×8, 10, 12, 15, 18, 20, 25, 30, 35, 40 | Dome | 8.0–41.0 mm | 1.5–33.0 mm | 6.1–6.2 mm | 12.6 | 2.5 | N/A | N/A | N/A | N/A | 4.0 mm | 31.0 mm | 5000 N | 4000 N |
| 6.4 mm | 6.4×8, 10, 12, 15, 18, 20, 25, 30, 35, 40 | Dome | 8.0–41.0 mm | 1.5–33.0 mm | 6.5–6.6 mm | 13.4 | 2.7 | N/A | N/A | N/A | N/A | 4.2 mm | 31.0 mm | 5400 N | 4350 N |
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
