Peel Type Blind Rivet
| Mandrel | Material | Carbon steel |
|---|---|---|
| Surface | Zinc plated | |
| Body | Material | Aluminum |
| Surface | Natural polish |

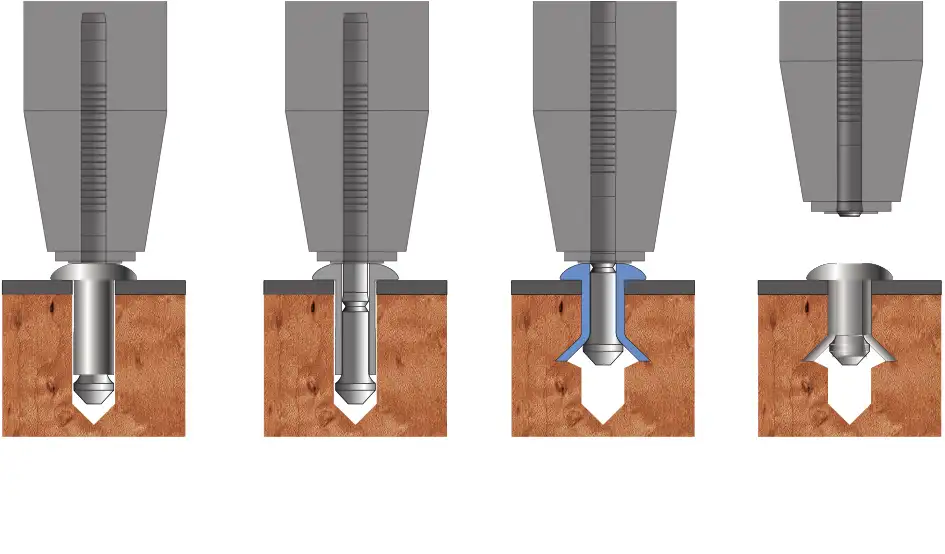

Installation Sequence
Secured,effective installation

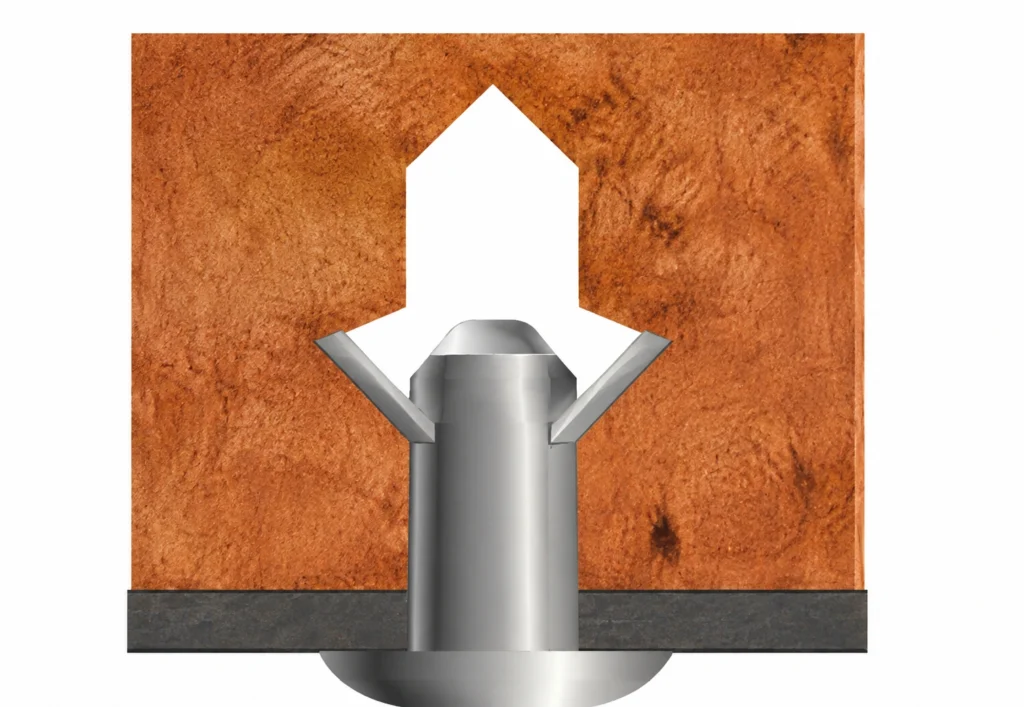

- The “cracked” tail molding makes it to be ideally used for riveting of metal and wood, sheets or low-density plastics.
- The large pressure bearing surface is extended to blind hole, which provides the high mandrel retaining force.
- Ideal replacements of the wood screw or self-tapping screw.
Structure and parameters

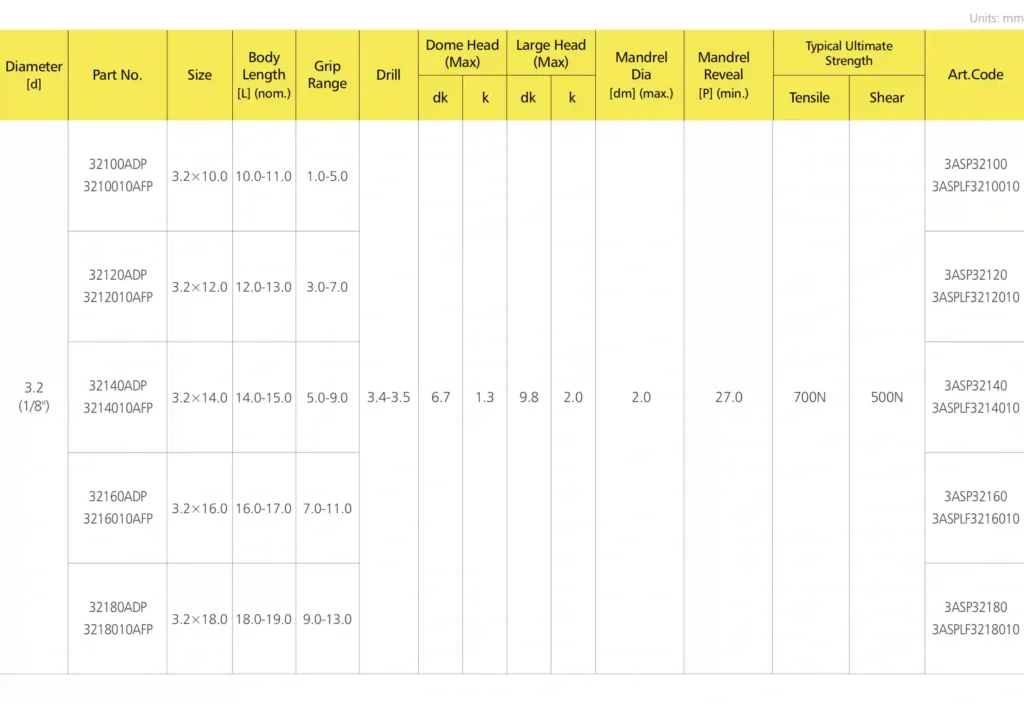

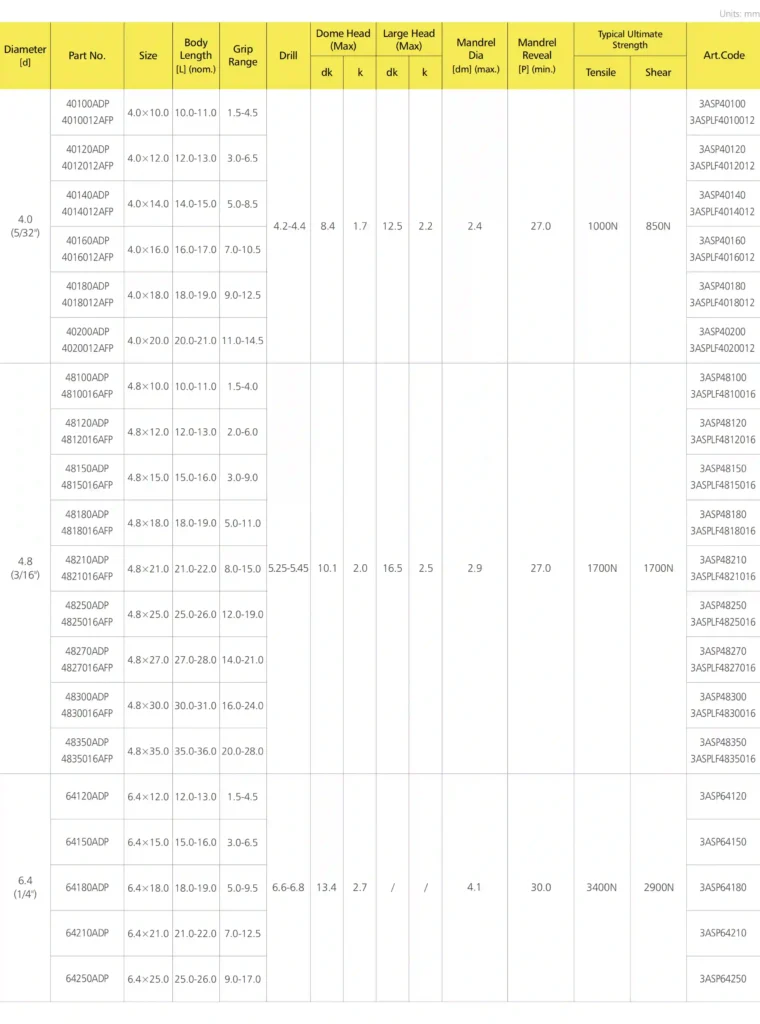

Technical Parameters
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
