Sealed Type Blind Rivet (Stainless Steel 304/304)
| Mandrel | Material | 304 Stainless steel |
|---|---|---|
| Surface | Natural polish | |
| Body | Material | 304 Stainless steel |
| Surface | Natural polish |
Installation Sequence
Secured,effective installation
- Fully sealed fastener which provides the weather resistance fastener.
- Good hole filling and retained mandrel which can provide the steady vibration resistance riveting.
- The size is from φ3.2mm (1/8”) to 6.4mm (1/4”).
Structure and parameters
Technical Parameters

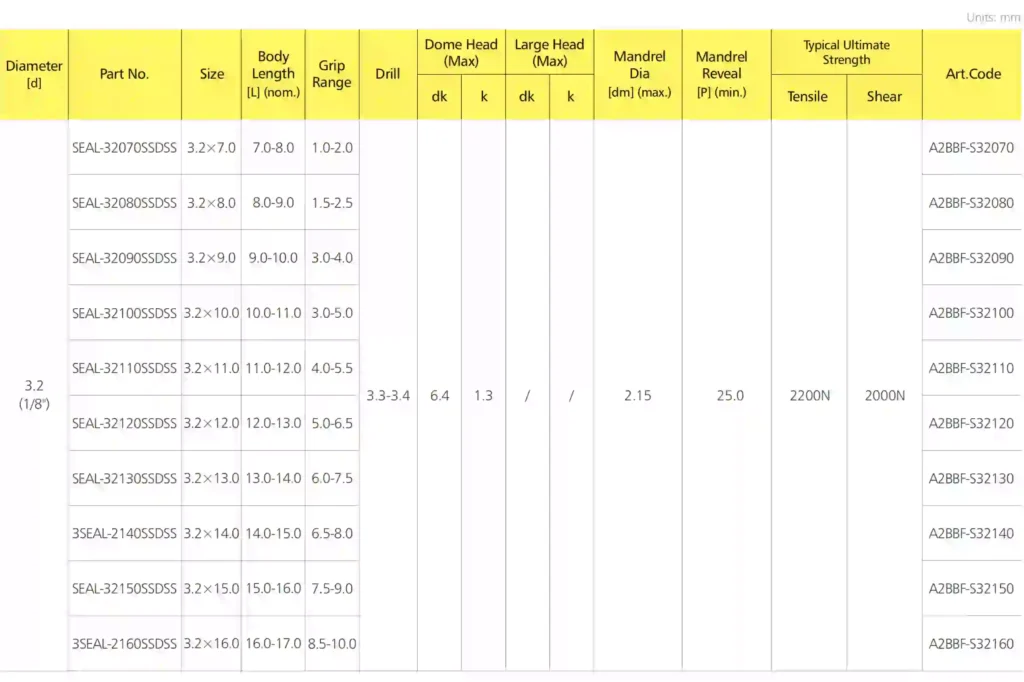

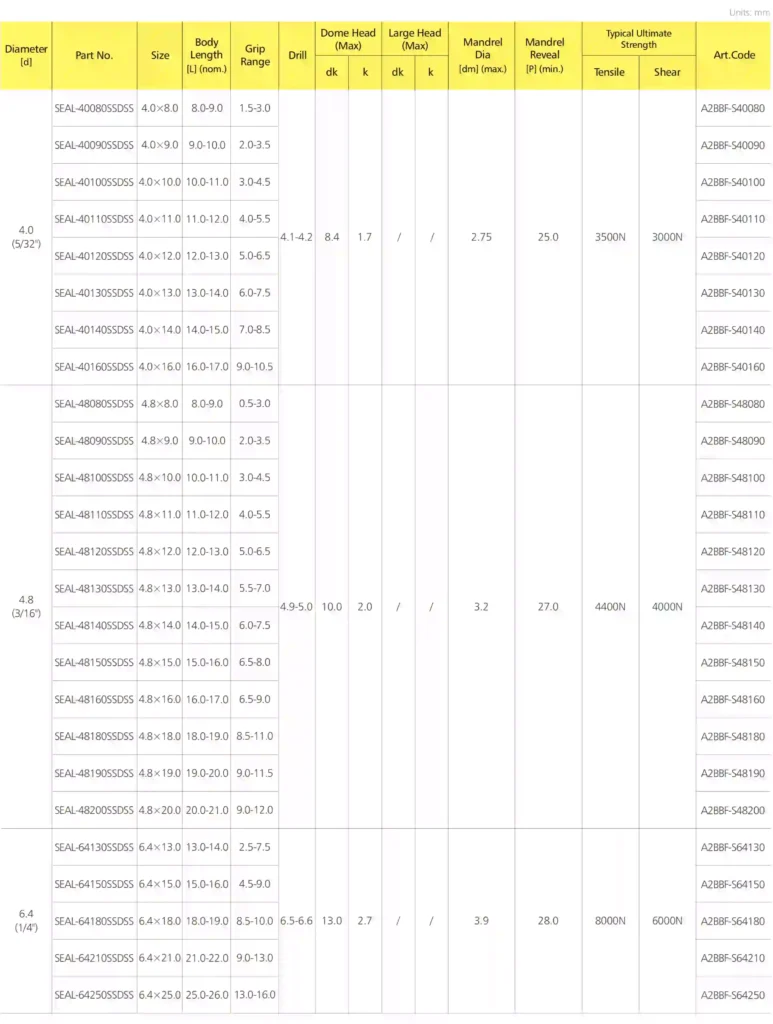

| Diameter d | Available Sizes | Available Head Types | Body Length L (nom.) | Overall Grip Range | Recommended Drill | Dome Head Max. | Countersunk Head Max. | Mandrel Dia. dm (max.) | Mandrel Reveal P (min.) | Typical Ultimate Strength | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dk | k | Tensile | Shear | |||||||||
| 3.2 mm | 3.2×7.0, 8.0, 9.0, 10.0, 11.0, 12.0, 13.0, 14.0, 15.0, 16.0 | Dome | 7.0–16.0 mm | 1.0–10.0 mm | 3.3–3.4 mm | 6.4 | 1.3 | N/A | 2.15 mm | 25.0 mm | 2200 N | 2000 N |
| 4.0 mm | 4.0×7.0, 8.0, 9.5, 10.0, 12.0, 14.0, 16.0 | Dome | 7.0–16.0 mm | 1.5–9.0 mm | 4.1–4.2 mm | 8.4 | 1.7 | N/A | 2.75 mm | 25.0 mm | 3500 N | 3000 N |
| 4.8 mm | 4.8×8.0, 9.5, 12.0, 14.0, 16.0, 18.0, 20.0 | Dome | 8.0–20.0 mm | 3.0–9.0 mm | 4.9–5.0 mm | 10.0 | 2.0 | N/A | 3.20 mm | 27.0 mm | 4400 N | 4000 N |
| 6.4 mm | 6.4×12.0, 16.0, 18.0, 20.0, 25.0 | Dome | 12.0–25.0 mm | 5.0–10.0 mm | 6.5–6.6 mm | 13.0 | 2.7 | N/A | 3.90 mm | 28.0 mm | 8000 N | 6000 N |
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
