Multi-grip Blind Rivet (All stainless steel)

Installation Sequence

Multi-grip property adaptable to the scope of width of sheet material thickness.
This serial fastener can replace multiple standard riveting fasteners, so the inventory of fasteners is reduced, and the inventory control is simplified.
Good hole filling which can provide the solid and vibration resistant connection.
Be able to provide supplementary riveting for irregular and over tolerance hole, or oval holes.
The sheets can be still unmoved in the non-standard hole.
The retained mandrel can avoid damage, electric leakage or marowak sound and other problems caused by falling off of the mandrel.

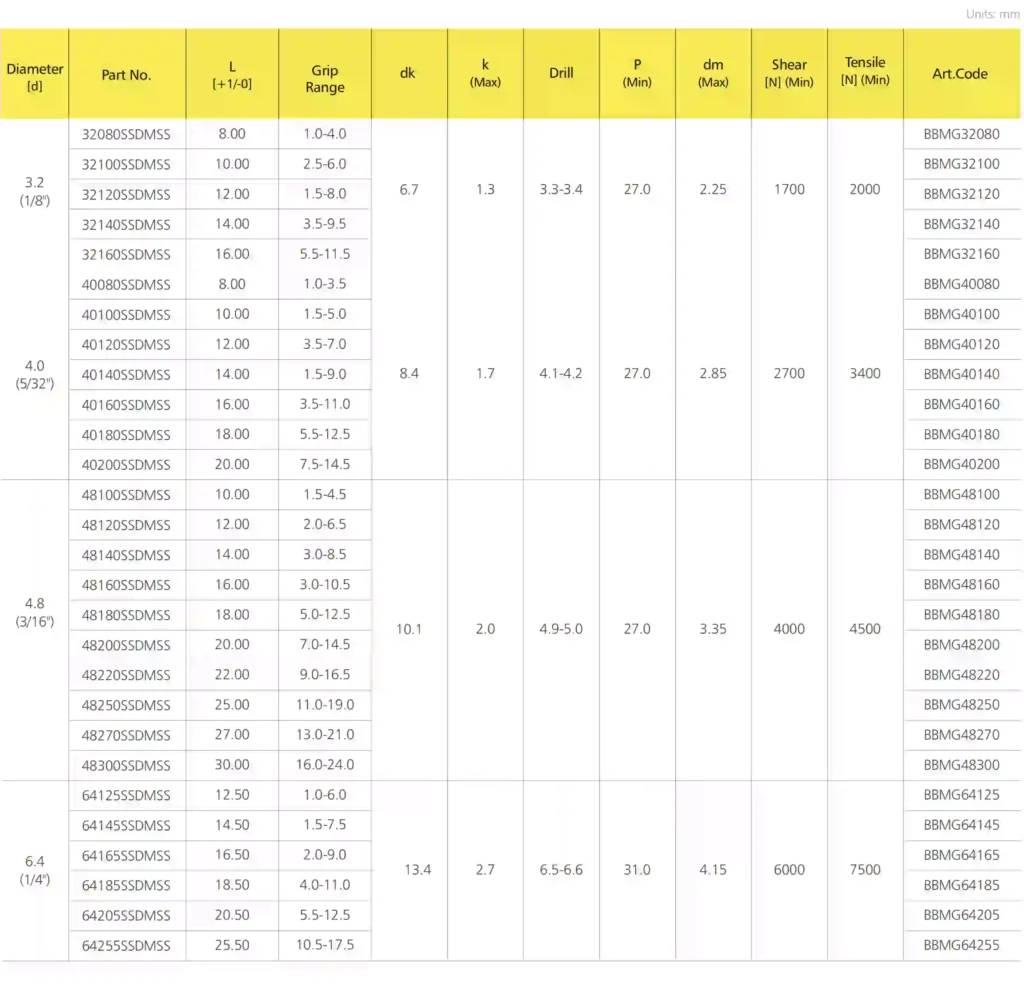

Diameter d	Available Sizes	Available Head Types	Body Length L (nom.)	Overall Grip Range	Recommended Drill	Dome Head Max.		Mandrel Dia. dm (max.)	Mandrel Reveal P (min.)	Typical Ultimate Strength
Diameter d	Available Sizes	Available Head Types	Body Length L (nom.)	Overall Grip Range	Recommended Drill	dk	k	Mandrel Dia. dm (max.)	Mandrel Reveal P (min.)	Tensile	Shear
3.2 mm	8.0 / 10.0 / 12.0 / 14.0 / 16.0	Dome Head	8.0–16.0 mm	1.0–11.5 mm	3.3–3.4 mm	6.7	1.3	2.25 mm	27.0 mm	2000 N	1700 N
4.0 mm	8.0 / 10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0	Dome Head	8.0–20.0 mm	1.0–14.5 mm	4.1–4.2 mm	8.4	1.7	2.85 mm	27.0 mm	3400 N	2700 N
4.8 mm	10.0 / 12.0 / 14.0 / 16.0 / 18.0 / 20.0 / 22.0 / 25.0 / 27.0 / 30.0	Dome Head	10.0–30.0 mm	1.5–24.0 mm	4.9–5.0 mm	10.1	2.0	3.35 mm	27.0 mm	4500 N	4000 N
6.4 mm	12.5 / 14.5 / 16.5 / 18.5 / 20.5 / 25.5	Dome Head	12.5–25.5 mm	1.0–17.5 mm	6.5–6.6 mm	13.4	2.7	4.15 mm	31.0 mm	7500 N	6000 N
