Aluminium / Steel Grooved Type
| Mandrel | Material | Aluminium |
|---|---|---|
| Surface | Zinc plated | |
| Body | Material | Steel |
| Surface | Polished |

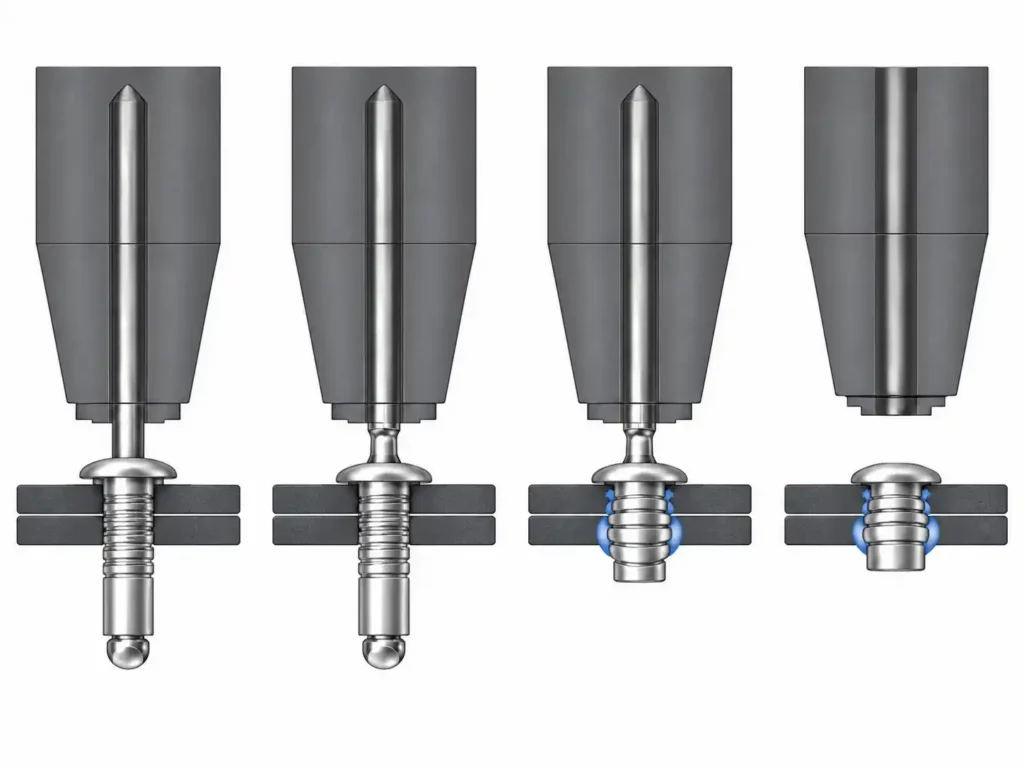

Installation Sequence
Secured,effective installation
- Multilayer and multi-type materials connecting.
- Up to 14mm aluminum alloy and 8mm steel.
- Up to 1200Mpa high strength steel plate.
- No pre-drilling is required, improving the performance of anti-corrosion.
- Glue can be applied between material plate, with little influence.
- High connection strength and fatigue resistance.
- Rapid completion of process and low energy consumption.
- High accuracy of repeated connection.
- Visual inspection of quality.
- Meet the demand of full automation.
- Free of smoke, steam and spark, low noise.

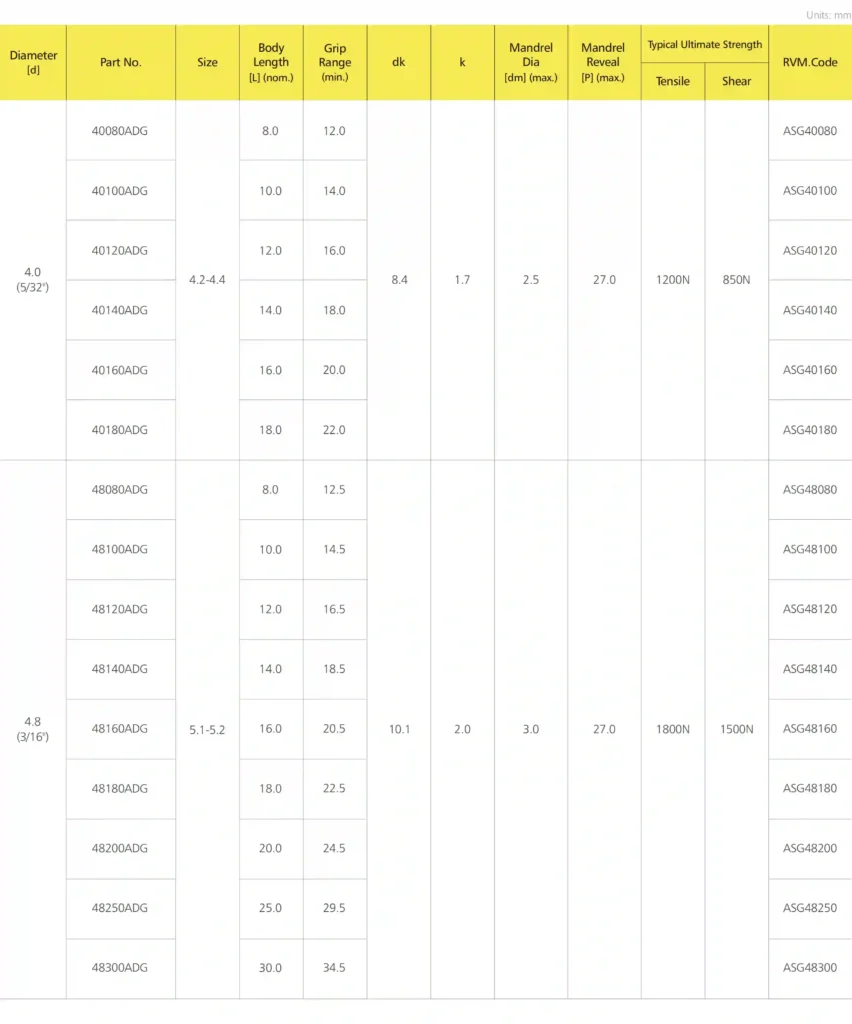

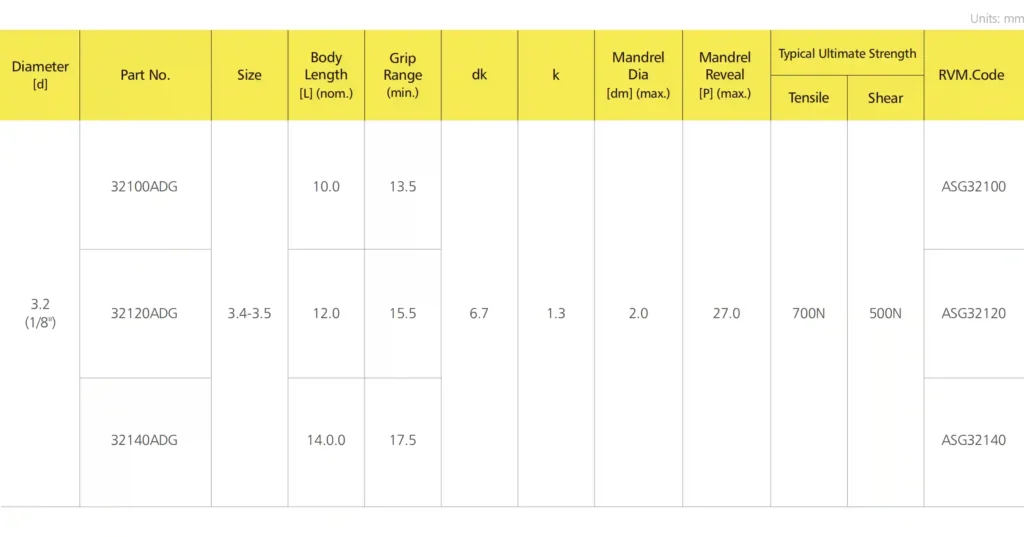

Structure and parameters
Technical Parameters
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
