Carbon Steel ORLOCK Blind Rivet (Steel)
| Mandrel | Material | Carbon steel SWCH45K |
|---|---|---|
| Surface | Zinc plated | |
| Body | Material | Carbon steel 10B21 |
| Surface | Zinc plated |
Installation Sequence
Secured,effective installation
- High shearing strength and tensile strength which can provide the solid and vibration resistant connection.
- Provide the large blind side bearing area to be close to rear plate.
- The mandrel pressure bearing load/riveting load are dispersed on the blind side sheets which makes it to be ideally used in sheet materials.
- Good hole filling which can provide supplementary riveting for the irregular and over tolerance hole, oval or malposition holes.
- The retained mandrel can avoid damage, electric leakage or marowak sound and other problems caused by falling off of the mandrel.
Structure and parameters

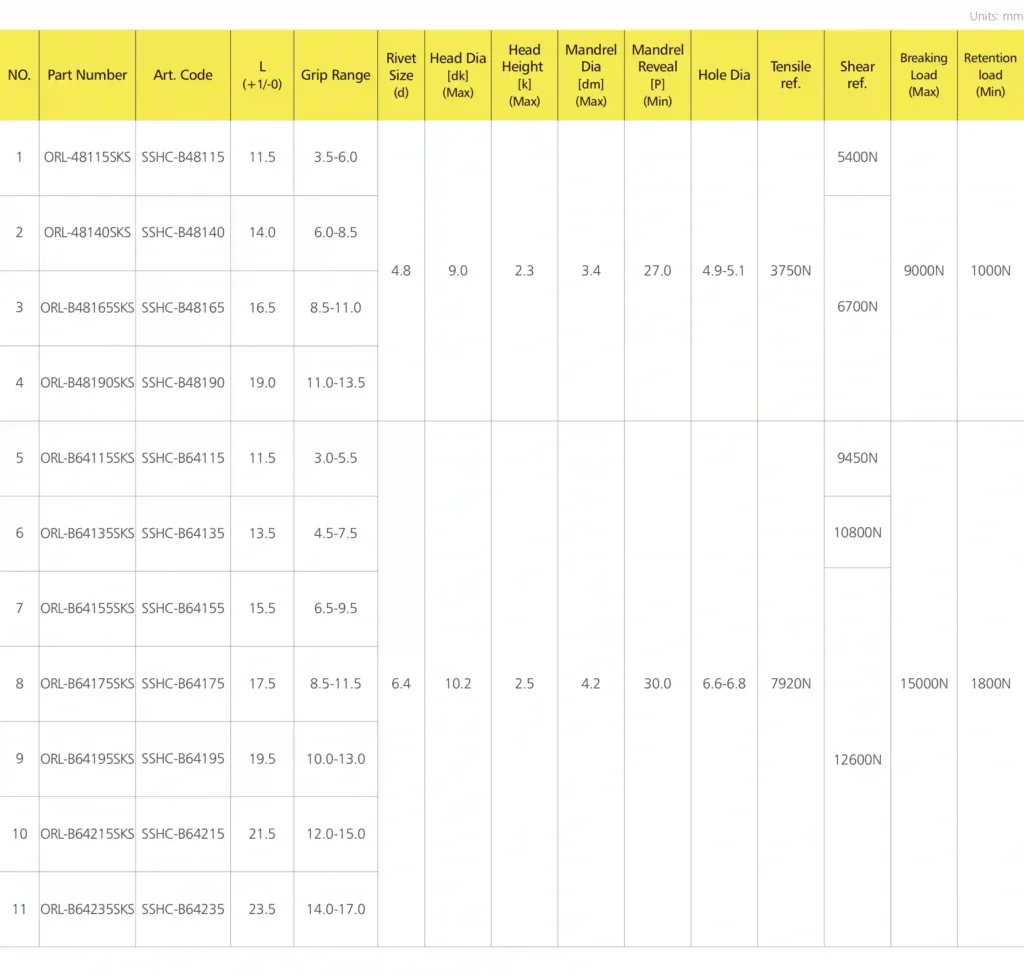

Technical Parameters
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
