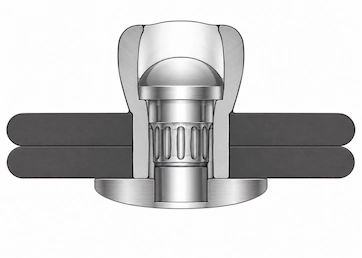

Q-Lock Blind Rivet(All carbon steel)
| Mandrel | Material | Carbon steel |
|---|---|---|
| Surface | Zinc plated | |
| Body | Material | Carbon steel |
| Surface | Zinc plated |

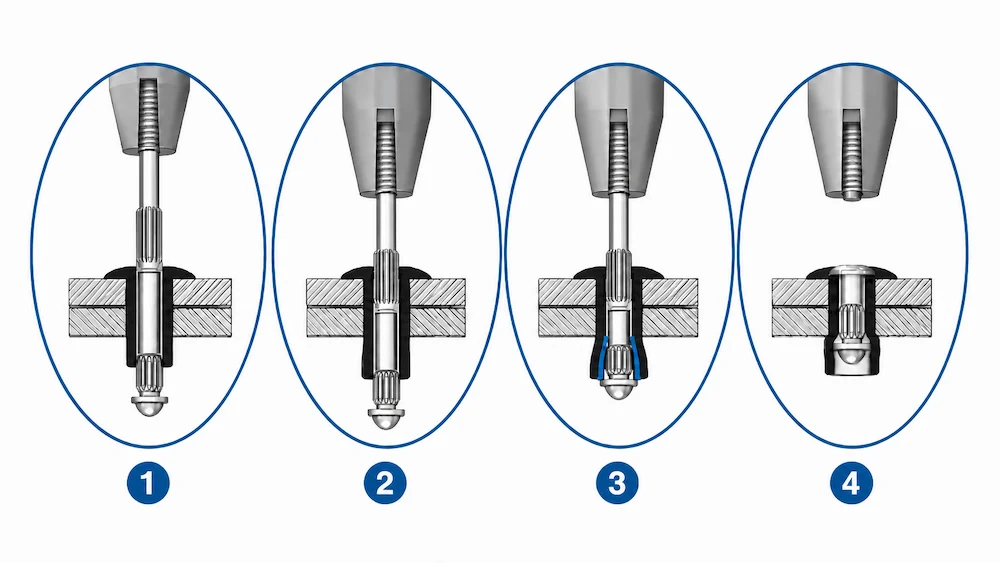

Installation Sequence
Secured,effective installation
- High-strength structural blind rivets.
- Blind-side riveting.
- Fast & simple installation.
- Secure mandrel locking after riveting.
- High shear and tensile strength.
- High mandrel retention.
- Good resistance to vibration and loosening.
- Suitable for demanding structural applications.
Structure and parameters

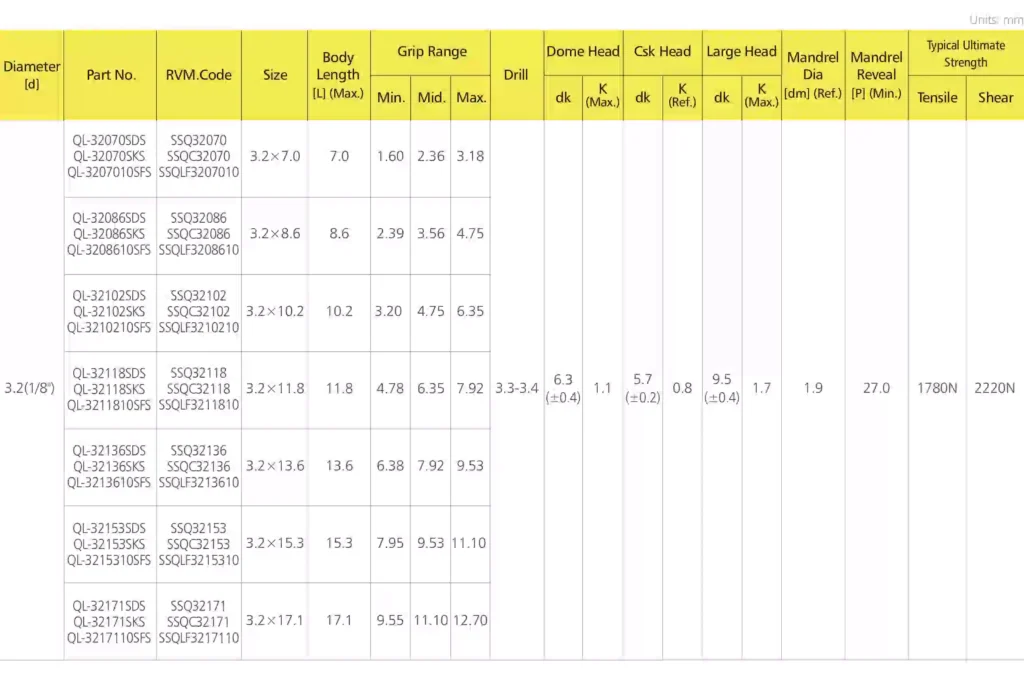

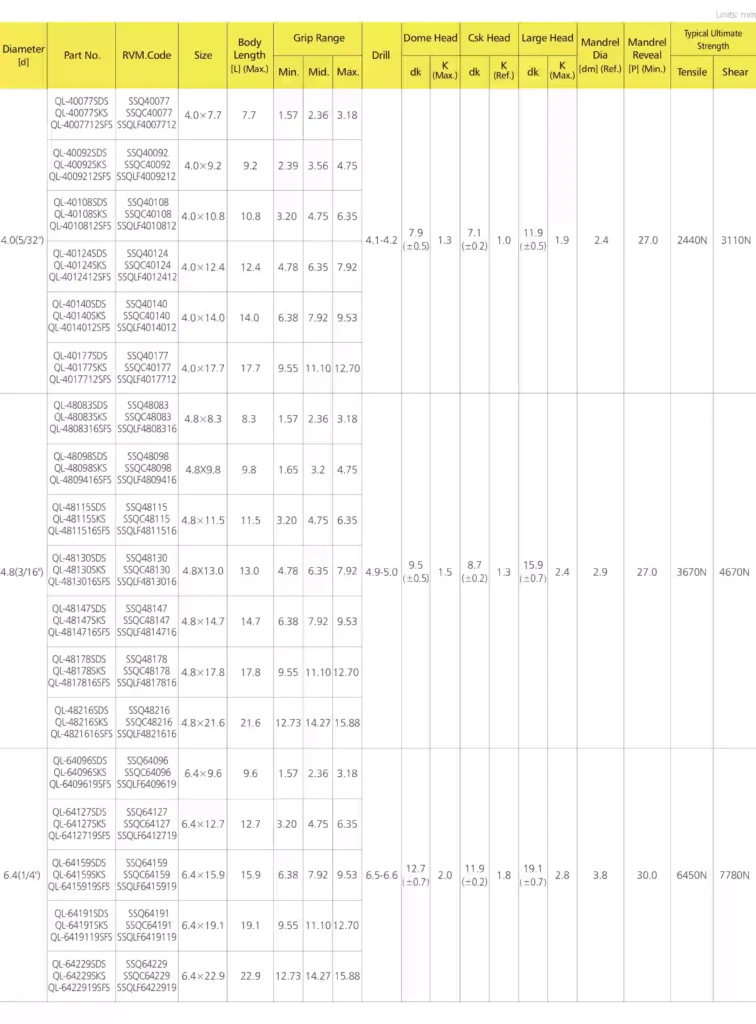

Technical Parameters
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
