Rivbulb Double-locking System
| Mandrel | Material | Carbon steel |
|---|---|---|
| Surface |
Green trivalent electroplating blue white zinc |
|
| Body | Material | Carbon steel |
| Surface |
Green trivalent electroplating blue white zinc |
Installation Sequence
Secured,effective installation
- High-strength structural blind riveting.
- Blind-side installation with access from one side only.
- Double-locking system for a secure and stable joint.
- Large blind-side expansion for improved load distribution.
- High retaining force after riveting.
- Good resistance to vibration and loosening.
- Fast and simple installation.
- Suitable for thin sheet and demanding structural applications.
Structure and parameters

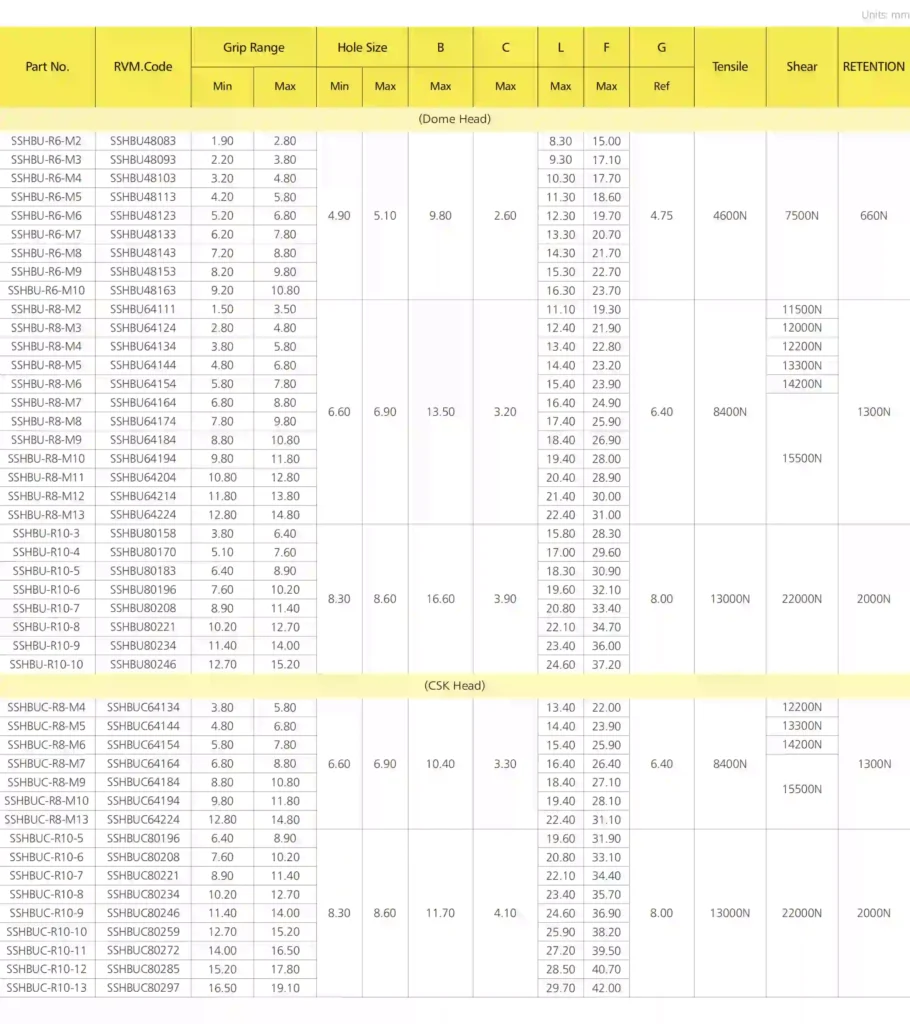

Technical Parameters
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
