M-Lock Pin (Steel)
| Collar | Material | Carbon steel |
|---|---|---|
| Surface | Green trivalent electroplating blue white zinc | |
| Pin | Material | Carbon steel |
| Surface | Green trivalent electroplating blue white zinc |
Installation Sequence
Secured,effective installation
- Large grip range reduces the inventory of fasteners and simplifies the inventory control and is adaptable to the scope of width of sheet material thickness.
- High shear and tensile strength of high-strength assembly.
- The high-strength controlled riveting provides the excellent vibration resistance.
- Rapid installation for large-scope application.
- The brazier head, countersunk head and large brazier head are suitable for multiple applications.
- Be convenient for checking impact.
- A large-scope selection for dedicated installation tool.
Structure and parameters

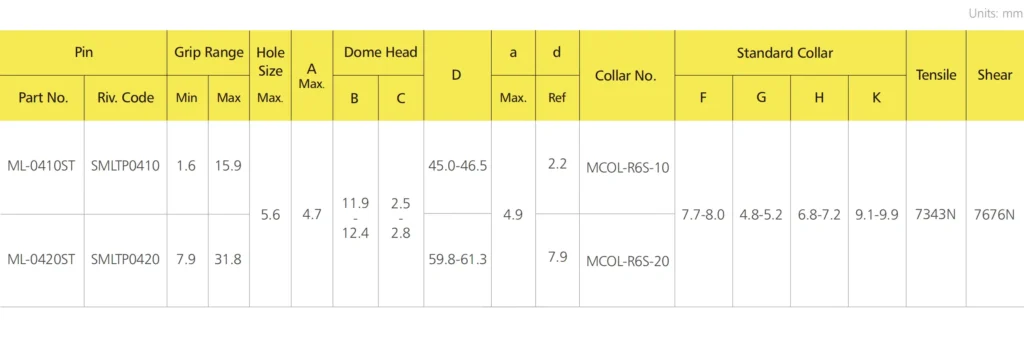

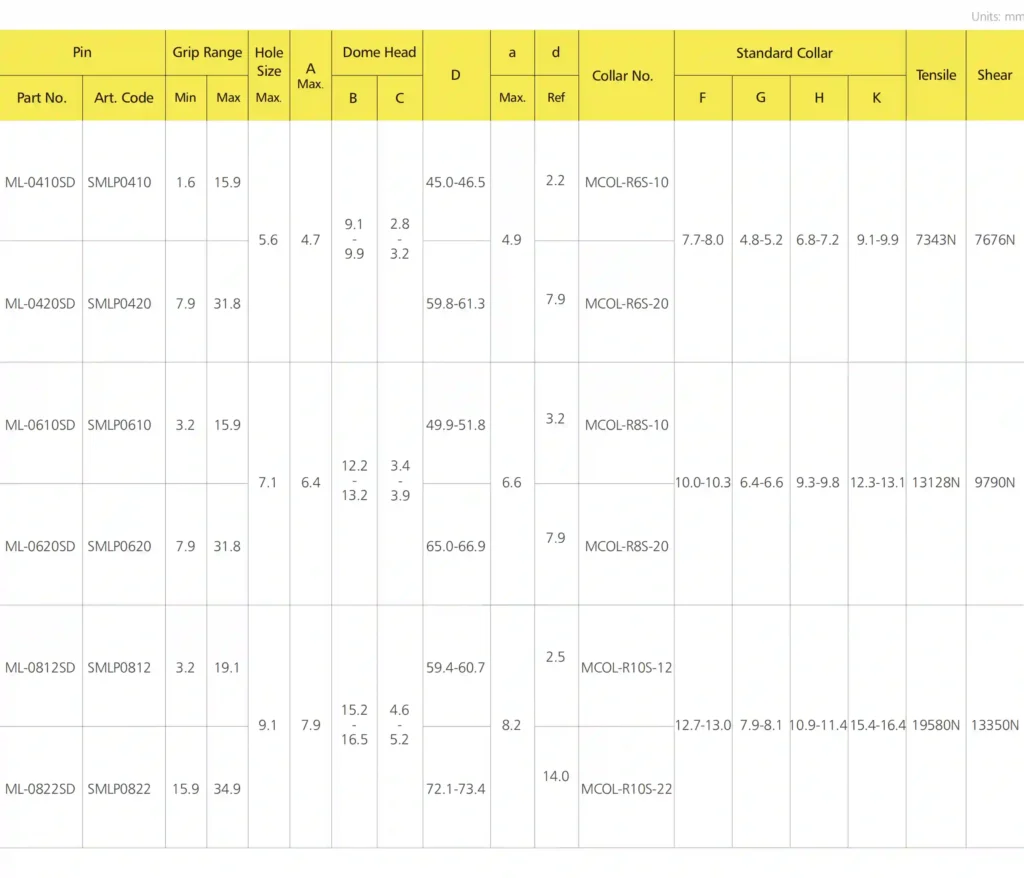

Technical Parameters
Recommended tool
| Parameter | C864 | C848 |
|---|---|---|
| Capacity All Materials | Φ3.2 — Φ6.4mm | Φ2.4 — Φ4.8mm |
| Pressure Required | 0.5 — 0.7Mpa | 0.5 — 0.7Mpa |
| Pull Force | ≥14.68Kn | ≥9Kn |
| Weight | 1.64kg | 1.45kg |
